Manufacturing Sewing Machines since 1838. MERROW - perhaps the most interesting sewing machine company in the world has two main goals: 1. We build great sewing machines. Merrow builds the worlds' best overlock sewing machines and specializes in customizing them for specific applications. Our sewing machines are the connection between the sample room and the factory floor.Merrow Machines are designed for the modern industrial sewing room and are available in quantity to the industrial markets worldwide; where production on scale happens. But our Sample Room is designed for the production manager, student or fashion designer. We will build a stitch that works perfectly for a specific application, and then produce the machines needed to build it in quantity.This has been a successful formula: there are more than 300,000 Merrow Machines used worldwide. We estimate there are Tens of Thousands of variations of our machines working all day every day.The Merrow Machine is unique by design, and its stitch is the best in the world.
2. We help people produce a valuable stitch.The Stitch Matters It Means a lot to call a stitch a Merrow. Merrow Sewing Machines incorporate a unique cam driven technology which achieves more consistent, technically superior stitches. The result is that products stitched on Merrow machines have better seams, last longer and wear better.Stitching matters, we know it, and now so do you. Producing textiles, garments, and other sewn products with a Merrow Stitch creates value in the marketplace, allowing customers to distinguish between a high quality designed stitch, and everything else.To do this, we build great sewing machines and support the thousands of different stitches that our machines can produce with spare parts milled to .001" tolerances (in many cases). We support just about every machine we've ever made, and still ship parts for machines manufactured in the 1800s!
Since 1838, the Merrow Sewing Machine Company has set standards in engineering and quality. Charlie and Owen Merrow carry on the tradition today, modernizing and expanding the eight generation company. Over the past 15 years, the brothers’ advancements have increased global reach and garnered multiple awards, including the 2018 Massachusetts Manufacturer of the Year and the 2017 Constellation SuperNova Award for Technology Optimization. Merrow's generations of innovation and service have built a reputation for excellence that continues to shine almost two hundred years after its founding.
MERROW HISTORY - 181 YEARS OF SERVICE
MERROW 2024 SEWING MACHINE CATALOG

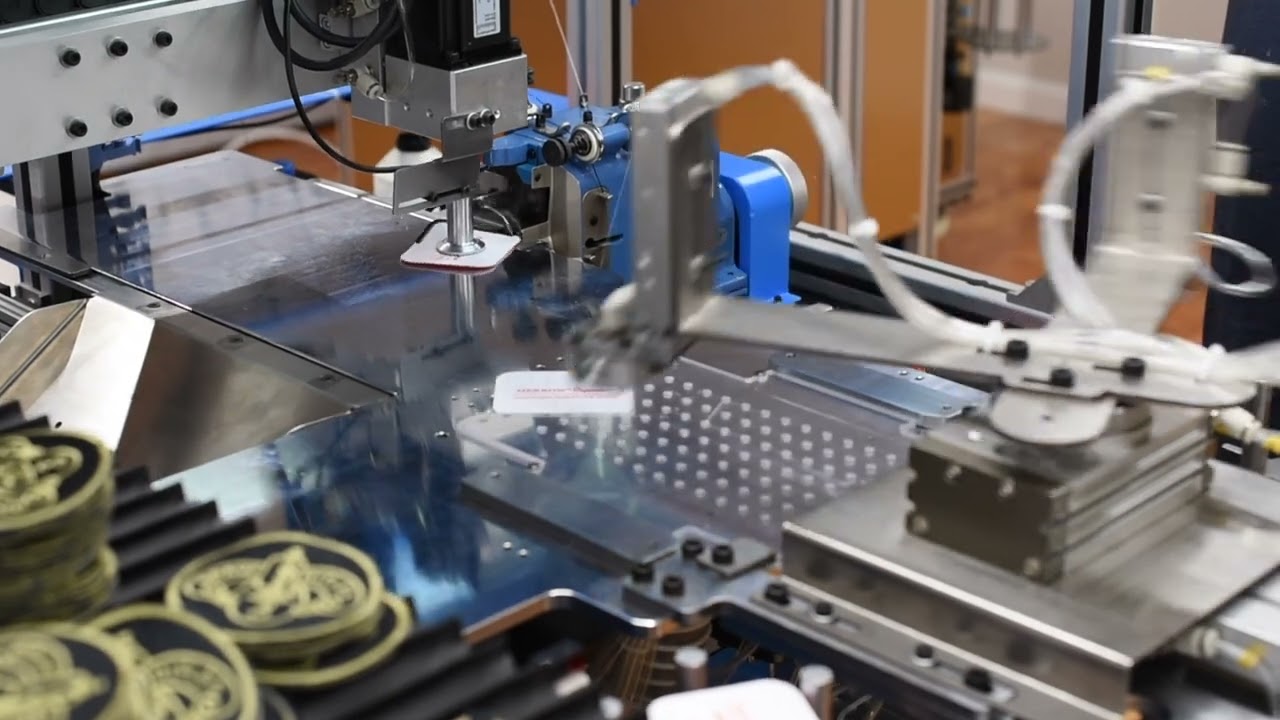

  • MERROW MG-3/ EDGEHOG ROBOTIC EDGING MACHINE FULLY AUTOMATIC EMBLEM EDGING MACHINE
  • The emblem edging machine turns patch production into a fully automated process.
  • With its hands-free operation, this machine automatically feeds, trims, and counts emblems.

  • Increase your production today!
  • Applications:
  • Emblems
  • Badges
  • Patches
  • Insignia
REQUEST QUOTE
MERROW 2024 SEWING MACHINE CATALOG
Machine Specs: - Stitch Types Supported: 503 (MG-2U) and 504 (MG-3U & V. NRW, Wide)
- Maximum Speed: 4500 RPM Recommended
- Operating Speed: 3900 RPM for optimal performance
- Power Supply: 220V, single-phase
- Operating System: Windows 10
- Display: 16" LED screen
- Camera System: Standard camera system included for irregular shapes
  • MERROW MB-4DFO 2.0 SERIES
  • ACTIVE SEAM
  • FLAT OVERLOCK

  • The MB-4DFO 2 Series is a NEW category of sewing machines designed by Merrow to produce ActiveSeam®. The platform (2.1, 2.2, 2.3, 2.4) are a two or three- thread premier industrial serger that sews three versions of the Merrow ActiveSeam. ActiveSeam 2 is a NEW flat overlock stitch that provides an ALTERNATIVE TO FLATLOCK, INTERLOCK AND OVERLOCK STITCHING on sewn garments.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 3/32"-5/32"
  • STITCH RANGE 10-40 spi
  • STANDARD NEEDLE A1DF
  • MERROW NEEDLE RANGE A00DF - A2DF
  • FEDERAL STITCH TYPE ACTIVESEAM
  • MOTOR REQUIRED* 3450 RPM, 110/220 volt, 1/2HP
  • NUMBER OF THREADS 2 -3
REQUEST QUOTE
MERROW 2024 SEWING MACHINE CATALOG
  • MERROW MG-1DM
  • HIGH SPEED SEAMING FOR MATTRESS COVERS

  • The Merrow MG-1DM is a NEW railway mounted butt seamer that joins the open ends of fire retardant mattress socks. It sews with para-aramid (Nomex) thread and replaces more costly tacking and glueing applications.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 3/8" Standard
  • STITCH RANGE 4-12 SPI
  • STANDARD NEEDLE MERROW 4SDT
  • MERROW NEEDLE RANGE MERROW 4SDT-6SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 1-2
REQUEST QUOTE
MERROW 2023 SEWING MACHINE CATALOG
  • MERROW MG-2DNR-1
  • INDUSTRIAL PURL EDGE SEWING MACHINE

  • The Merrow Purl Stitching Machine (or merrowing machine) sews a narrow rolled hem on light to mid-weight fabrics. It can be ruffled to create a 'lettuce edge' look as well. Famous for it's accuracy, the Merrow Purl edge is unparalleled in the business.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/16" - 3/16"
  • STITCH RANGE 14 - 40 SPI (22 SPI Standard)
  • STANDARD NEEDLE MERROW 2SDT
  • MERROW NEEDLE RANGE MERROW 0SDT-4SDT
  • FEDERAL STITCH TYPE 502
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 2-6
REQUEST QUOTE
MERROW MG-2DNR-1 MICRODECORATIVE MICROPURL EDGING MACHINE
  • MERROW MG-2DNR-1 MICRO
  • DECORATIVE MICROPURL EDGING MACHINE

  • The Merrow MG-2DNR-1 MICRO sews the only stitch of its kind in the world - the 1/32" (.8mm) Merrow MicroPurl™ for decorating the edges of sheer and gossamer fabric. No other sewing machine can match the precision of the purl sewn by the MG-2DNR-1 MICRO.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/32"
  • STITCH RANGE 14 - 40 SPI (22 SPI Standard)
  • STANDARD NEEDLE MERROW 0SDT
  • MERROW NEEDLE RANGE MERROW 000SDT-2SDT
  • FEDERAL STITCH TYPE 502
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 2
REQUEST QUOTE
MERROW MG-2UFLAT EDGE EMBLEM MACHINE
  • MERROW MG-2U
  • FLAT EDGE EMBLEM MACHINE

  • The Merrow MG-2U sews a flat finished edge on the edges of emblems. It is a faster, more refined replacement for embroidery machines that are typically used to sew flat edges on patches and emblems.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 3/32"
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 4SDT
  • MERROW NEEDLE RANGE MERROW 3SDT-5SDT
  • FEDERAL STITCH TYPE 505
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 2
REQUEST QUOTE
MERROW MG-3DINDUSTRIAL SEWING MACHINEFOR SEAMING HEAVY BLANKETS
  • MERROW MG-3D
  • INDUSTRIAL SEWING MACHINE
  • FOR SEAMING HEAVY BLANKETS

  • The MG-3D is a version of one of Merrow's MG Class Hemming Machines that has been modified for specific use on heavy wool blankets. The MG-3D sews a standard 1/4" seam which can be adjusted according to application requirements.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/4" Standard
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 5SDT
  • MERROW NEEDLE RANGE MERROW 1SDT-8SDT
  • FEDERAL STITCH TYPE 504
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3
REQUEST QUOTE
MERROW MG-3DGE-7INDUSTRIAL SEWING MACHINEFOR NETTING
  • MERROW MG-3DGE-7
  • INDUSTRIAL SEWING MACHINE
  • FOR NETTING

  • The Merrow MG-3DGE-7 is designed for sewing loosely spaced netting. It uses a specifically suited presser wheel that will not catch in the mesh holes and feeds material uniformly. The result - a netting stitch that is consistent, uniform, and strong.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 5/32" Standard
  • STITCH RANGE 4 - 40 SPI
  • STANDARD NEEDLE MERROW 5SDT
  • MERROW NEEDLE RANGE MERROW 1SDT-8SDT
  • FEDERAL STITCH TYPE 504
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3
REQUEST QUOTE
MERROW MG-3DWINDUSTRIAL SEWING MACHINEFOR HEMMING AND SEAMING
  • MERROW MG-3DW
  • INDUSTRIAL SEWING MACHINE
  • FOR HEMMING AND SEAMING

  • The Merrow MG-3DW sews a tight seam or edge on lightweight to medium weight fabric. It creates a three-thread stitch that is a standard width of 1/8" at a standard speed of 8 SPI (adjustable from 4-40 SPI). The MG-3DW is Merrow's standard setup for hemming delicate or fine material.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/8" Standard
  • STITCH RANGE 4 - 40 SPI
  • STANDARD NEEDLE MERROW 3SDT
  • MERROW NEEDLE RANGE MERROW 1SDT-5SDT
  • FEDERAL STITCH TYPE 504
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3
REQUEST QUOTE
MERROW MG-3DW-2INDUSTRIAL SEWING MACHINEFOR SEAMING LIGHT FABRICS
  • MERROW MG-3DW-2
  • INDUSTRIAL SEWING MACHINE
  • FOR SEAMING LIGHT FABRICS

  • The Merrow MG-3DW-2 is Merrow's general overseaming machine for lightweight fabrics. Known for its versatility, the MG-3DW-2 has been in daily operation throughout the textile and knitting industries for decades.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/8"-1/4" Standard
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 5SDT
  • MERROW NEEDLE RANGE MERROW 1SDT-8SDT
  • FEDERAL STITCH TYPE 504
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3-6
REQUEST QUOTE
MERROW MG-3DW-7INDUSTRIAL SEWING MACHINEFOR SEAMING HEAVY FABRICS
  • MERROW MG-3DW-7
  • INDUSTRIAL SEWING MACHINE
  • FOR SEAMING HEAVY FABRICS

  • The Merrow MG-3DW-7 is Merrow's general overseaming machine for bulky, heavy fabrics. Known for its versatility, the MG-3DW-7 has been in daily operation throughout the textile and knitting industries for decades.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1-4" Standard
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 5SDT
  • MERROW NEEDLE RANGE MERROW 1SDT-8SDT
  • FEDERAL STITCH TYPE 504
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3-6
REQUEST QUOTE
MERROW MG-3DRWLNARROW DECORATIVE ROLLEDHEM SEWING MACHINE
  • MERROW MG-3DRWL
  • NARROW DECORATIVE ROLLED
  • HEM SEWING MACHINE

  • The Merrow MG-3DRWL sews a tight and narrow rolled hem on delicate fabrics such as silk, nylon tricot, and similar sheer material. It is equipped to sew long seam applications at high speed (5500 RPM).
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 3/32"
  • STITCH RANGE 8-30 SPI
  • STANDARD NEEDLE MERROW 1SDT
  • MERROW NEEDLE RANGE MERROW 0SDT-3SDT
  • FEDERAL STITCH TYPE 504
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3
REQUEST QUOTE
MERROW MG-3Q-3HIGH SPEED SHELL STITCHSEWING MACHINE
  • MERROW MG-3Q-3
  • HIGH SPEED SHELL STITCH
  • SEWING MACHINE

  • The Merrow MG-3Q-3 High Speed Shell Stitch Machine sews an astounding 5 shells per inch, creating the tightest and most beautiful stitch for garment edges.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH N/A
  • STITCH RANGE 3-6 Shells per inch
  • STANDARD NEEDLE MERROW 3SDT
  • MERROW NEEDLE RANGE MERROW 1SDT-3SDT
  • FEDERAL STITCH TYPE 505
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3-5
REQUEST QUOTE
MERROW MG-3UINDUSTRIAL SEWING MACHINEFOR EMBLEM EDGING
  • MERROW MG-3U
  • INDUSTRIAL SEWING MACHINE
  • FOR EMBLEM EDGING

  • The Merrow MG-3U sews a tight decorative edge on emblems and patches. The MG-3U stitch is renowned for its consistency, coverage, and uniformity.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/8"-3/16"
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 4SDT
  • MERROW NEEDLE RANGE MERROW 3SDT-5SDT
  • FEDERAL STITCH TYPE 505
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3-6
REQUEST QUOTE
MERROW MG-3UNNEW, UNIQUE NARROWEMBLEM EDGE
  • MERROW MG-3UN
  • NEW, UNIQUE NARROW
  • EMBLEM EDGE

  • The Merrow MG-3UN is a NEW emblem edging machine from Merrow that sews the smallest, tightest edge on patches, badges, and emblems. Ideal for smaller sized media, the MG-3UN offers a unique sewn edge only possible with the Merrow MG-3U platform of overlock machines.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/16"
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 2SD
  • MERROW NEEDLE RANGE MERROW 2SD-4BD
  • FEDERAL STITCH TYPE 505
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3
REQUEST QUOTE
MERROW MG-3UVEDGING MACHINE FORHOOK & LOOP EMBLEMS
  • MERROW MG-3UV
  • EDGING MACHINE FOR
  • HOOK & LOOP EMBLEMS

  • The Merrow MG-3UV Hook&Loop sews an emblem edge on Hook&Loop patches at high speed. The MG-3UV Hook&Loop sews without taking up any of the Hook&Loop backing, ensuring the integrity of the stitch as well as the adhesiveness of the patch.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 1/8"-3/16"
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 4SDT
  • MERROW NEEDLE RANGE MERROW 3SDT-5SDT
  • FEDERAL STITCH TYPE 505
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 3
REQUEST QUOTE
MERROW MG-3U WIDEINDUSTRIAL SEWING MACHINEFOR WIDE EMBLEM EDGING
  • MERROW MG-3U WIDE
  • INDUSTRIAL SEWING MACHINE
  • FOR WIDE EMBLEM EDGING

  • The Merrow MG-3U WIDE sews a clean, wide edge on emblems and patches. It is ideal for larger media when more accent at the edge is required.
  • OPERATING SPEED 5500 RPM
  • STITCH WIDTH 3/16"-3/8"
  • STITCH RANGE 20 - 40 SPI
  • STANDARD NEEDLE MERROW 4SDT
  • MERROW NEEDLE RANGE MERROW 3SDT-5SDT
  • FEDERAL STITCH TYPE 505
  • MOTOR REQUIRED* Merrow M12, 1/2HP, 3450 RPM
  • NUMBER OF THREADS 2
REQUEST QUOTE
MERROW 12-EHEAVY DUTY JOINING
  • MERROW 12-E
  • HEAVY DUTY JOINING

  • The 12-E is an American-made work horse meant for one thing - joining tough materials. Built to our strict manufacturing standards using robust parts and heavy-duty steel, the 12-E is designed to handle difficult to sew materials and heavy workloads.
  • OPERATING SPEED 1600 rpm RPM
  • STITCH WIDTH 5/8"
  • STITCH RANGE 4 - 12 SPI
  • STANDARD NEEDLE 11S
  • MERROW NEEDLE RANGE 10S, 11S
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS 1
REQUEST QUOTE
MERROW 70-D3B-2STANDARD 16MM (5/8")HIGH SPEED SEWING MACHINE
  • MERROW 70-D3B-2
  • STANDARD 16MM (5/8")
  • HIGH SPEED SEWING MACHINE

  • The 70-D3B-2 BUTTED SEAM Sewing Machine from Merrow is the flagship butted seam machine for the wovens industry.
  • With dozens of custom variations, the 70-D3B-2 is the most versatile and toughest sewing machine in the industry.
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS SINGLE THREAD
REQUEST QUOTE
MERROW 70-D3B-2 CNPNICKEL PLATED SEWING MACHINE FOR BUTT SEAMING
  • MERROW 70-D3B-2 CNP
  • NICKEL PLATED SEWING MACHINE
  • FOR BUTT SEAMING

  • The Merrow 70-D3B-2 CNP will not rust or corode in wet and caustic sewing environments. Designed to create 16MM (5/8") Stitch the 70-D3B-2 CNP IS completely NICKEL PLATED, making it the perfect sewing machine for Dyeing and Finishing facilities.
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS SINGLE THREAD
REQUEST QUOTE
MERROW 70-D3B-2 GGAP STITCH 16MM (5/8")BUTTED SEAM MACHINE
  • MERROW 70-D3B-2 G
  • GAP STITCH 16MM (5/8")
  • BUTTED SEAM MACHINE

  • The Merrow70-D3B-2 G modifications create a flat butted-seam stitch with a 1/8" space (the GAP) between the ends of the material. The G version of the 70-D3B-2 is the best selling butt seaming machine for thick woven fabrics
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS SINGLE THREAD
REQUEST QUOTE
MERROW 70-D3B-2 HPHIGH PILE BUTTED SEAMMACHINE FOR THICK FABRICS
  • MERROW 70-D3B-2 HP
  • HIGH PILE BUTTED SEAM
  • MACHINE FOR THICK FABRICS

  • The Merrow 70-D3B-2 HP for High Pile Fabrics allows the machine to sew a flat butted seam on fabrics up to 2" thick. The HP model was designed specifically to deliver a superior sewn edge on thick fabrics at more than 2000RPM
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS SINGLE THREAD
REQUEST QUOTE
MERROW 70-D3B-2 LSTWO THREAD, LOCKED STITCHBUTT SEAMING MACHINE
  • MERROW 70-D3B-2 LS
  • TWO THREAD, LOCKED STITCH
  • BUTT SEAMING MACHINE

  • The Merrow 70-D3B-2 LS is a the worlds best two thread butt seaming machine for light to mid-weight material. Designed to create a locked 16MM (5/8") Stitch the 70-D3B-2 LS is the most reliable way to secure two butt-ends of material
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS TWO THREAD
REQUEST QUOTE
MERROW 70-D3B-2 RAILBUTTED SEAM SEWING MACHINE FOR RAILWAYS
  • MERROW 70-D3B-2 RAIL
  • BUTTED SEAM SEWING
  • MACHINE FOR RAILWAYS

  • The Merrow 70-D3B-2 RAIL is a requirement for any automated processing facility. Designed to be mounted on a railway sewing system the 70-D3B-2 RAIL is the most reliable means of joining wide material when straight and square seams are essential.
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* RAILWAY DRIVEN
  • NUMBER OF THREADS SINGLE THREAD
REQUEST QUOTE
MERROW 70-Y3B-2STITCH MULTIPLYING BUTT SEAM SEWING MACHINE
  • MERROW 70-Y3B-2
  • STITCH MULTIPLYING
  • BUTT SEAM SEWING MACHINE

  • The Merrow 70-Y3B-2 is designed with a stitch multiplier that is lever operated on demand. The stitch multiplier doubles the stitch count and is ideal for applications that require extra strength at the selvages of joined material.
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS SINGLE THREAD
REQUEST QUOTE
MERROW 70-1D-2HIGH SPEED DRY SEAMING
  • MERROW 70-1D-2
  • HIGH SPEED
  • DRY SEAMING

  • The 71-Class is a NEW addition to the Merrow machine lineup. It replaces the outgoing 70-1D models and is available as a NEW painted model - the 71-1D-2 - as well as the traditional nickel plated version. The 71-Class is a high speed butt seamer that runs at 4000 rpm and sews a 3/8" wide stitch.
  • OPERATING SPEED 4000 RPM
  • STITCH WIDTH 6.4MM (3/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 6SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 3450 RPM, 110/220 volt, 1/2HP
  • NUMBER OF THREADS 1-2
REQUEST QUOTE
MERROW 70-1D-2 CNPHIGH SPEED WET SEAMINGNICKEL PLATED
  • MERROW 70-1D-2 CNP
  • HIGH SPEED WET SEAMING
  • NICKEL PLATED

  • The 71-1D-2 CNP is a completely nickel plated butt-seamer that is used for joining material in wet environments. It is a high speed sewing machine and sews a 3/8" wide tight butted seam on wet or dry goods. The 71-1D-2 CNP is ideal for light to medium weight knit material.
  • OPERATING SPEED 4000 RPM
  • STITCH WIDTH 6.4MM (3/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 6SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 3450 RPM, 110/220 volt, 1/2HP
  • NUMBER OF THREADS 1-2
REQUEST QUOTE
MERROW 70-1D-7 CNPHIGH SPEED WET SEAMINGNICKEL PLATED3/8" FLAT BUTT SEAM
  • MERROW 70-1D-7 CNP
  • HIGH SPEED WET SEAMING
  • NICKEL PLATED
  • 3/8" FLAT BUTT SEAM

  • The 71-1D-7 CNP is a high speed butt-seamer that has high lift cams for joining thicker knits. It sews a 3/8" flat butt seam at speed (up to 4000 rpm) and is completely nickel plated for use in harsh environments or when joining wet material.
  • OPERATING SPEED 4000 RPM
  • STITCH WIDTH 6.4MM (3/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 6SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 3450 RPM, 110/220 volt, 1/2HP
  • NUMBER OF THREADS 1-2
REQUEST QUOTE
MERROW 70-D3B-2EXTENDED FEED BUTT SEAMING MACHINE
  • MERROW 70-D3B-2
  • EXTENDED FEED BUTT
  • SEAMING MACHINE

  • Designed with an extended cutting system and THREE FEED DOGS for superior fabric handling, the 72 Class machines have become a favorite for Knit goods and a variety of non-woven processes. The 72-D3B-2 Series sews an identical stitch to the 70-D3B-2 but improves dramatically the reliability of sewing difficult fabrics.
  • OPERATING SPEED 2250 RPM
  • STITCH WIDTH 16MM (5/8")
  • STITCH RANGE 101MM - 305MM (4-12 SPI)
  • STANDARD NEEDLE MERROW 8SDT
  • MERROW NEEDLE RANGE MERROW 3SDT - 8SDT
  • FEDERAL STITCH TYPE 501
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS SINGLE THREAD
REQUEST QUOTE
MERROW 18-AROLLED EDGE CROCHETSTITCH SEWING MACHINE
  • MERROW 18-A
  • ROLLED EDGE CROCHET
  • STITCH SEWING MACHINE

  • The Merrow 18A is an adapted version of the 18E, the original mechanized crochet sewing machine. It sews a 1/2" rolled crochet edge using a single thread.
  • OPERATING SPEED 1200 SPM RPM
  • STITCH WIDTH 3/8" - 1/2", 1/2" Standard
  • STITCH RANGE 4 - 10 SPI
  • STANDARD NEEDLE 10
  • MERROW NEEDLE RANGE 8, 10H, 11,
  • FEDERAL STITCH TYPE ROLLED CROCHET
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS 1
REQUEST QUOTE
MERROW 18-EFLAT EDGE CROCHETSTITCH SEWING MACHINE
  • MERROW 18-E
  • FLAT EDGE CROCHET
  • STITCH SEWING MACHINE

  • The Merrow 18E was is world's best crochet sewing machine. Designed in 1899, Merrow has perfected the mechanics of the 18-E for more than a century. This machine is a world-class performer whose stitch rivals those made by hand, yet it sews at production level speeds.
  • OPERATING SPEED 1200 SPM RPM
  • STITCH WIDTH 3/8" - 1/2", 1/2" Standard
  • STITCH RANGE 4 - 10 SPI
  • STANDARD NEEDLE 10
  • MERROW NEEDLE RANGE 8, 10H, 11,
  • FEDERAL STITCH TYPE CROCHET
  • MOTOR REQUIRED* 1725 RPM, 60 Hz, 1/2 HP, 110 or 220 volts, 1 or 3 phase
  • NUMBER OF THREADS 1
REQUEST QUOTE
